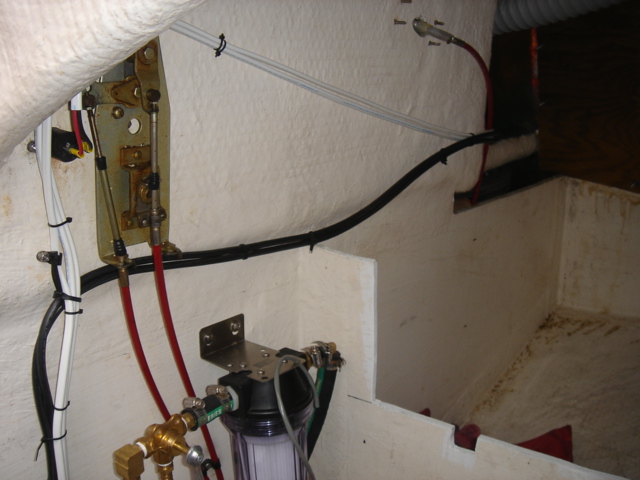

Figuring out the wiring

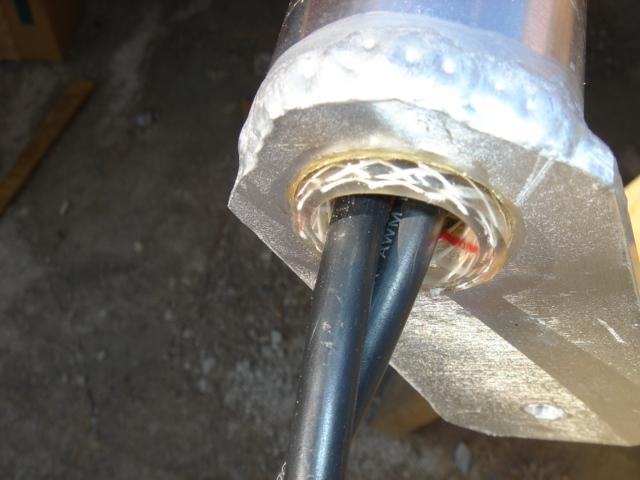

Chafe protection where the wind genny wires exit the mounting mast

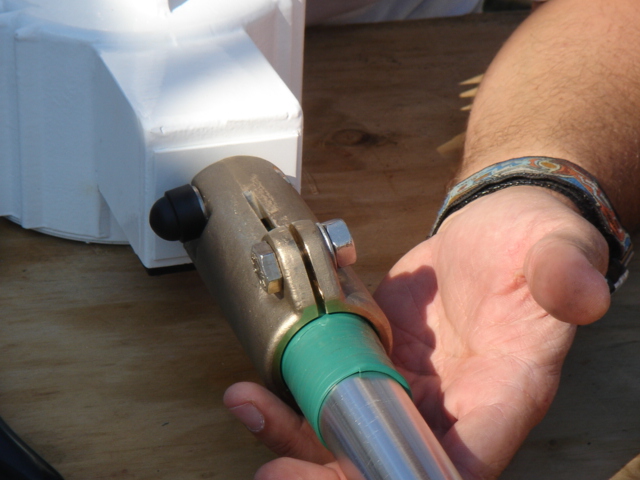

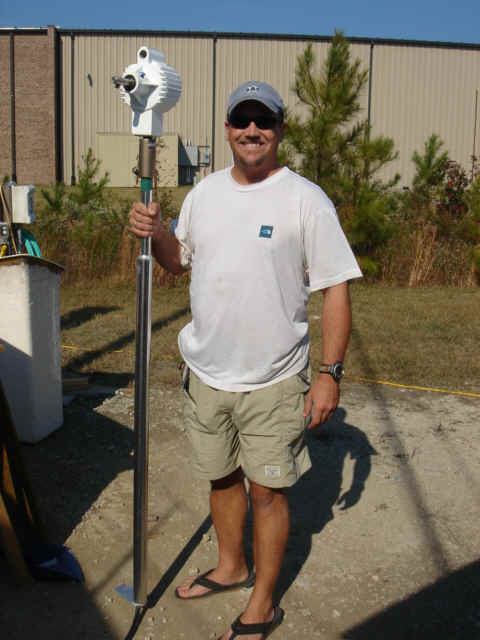

Mounting the genny to its' mast

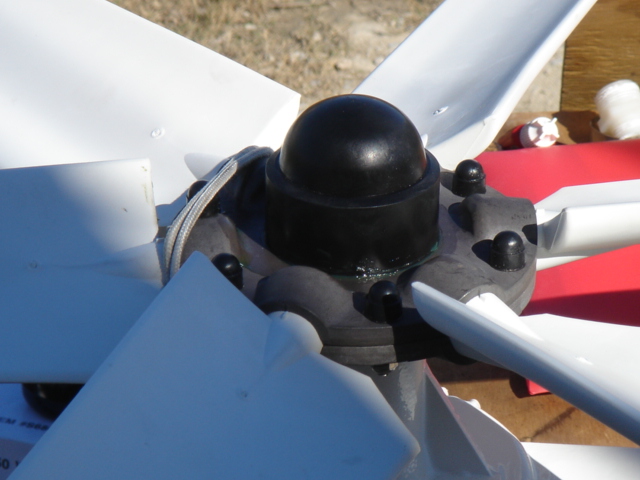

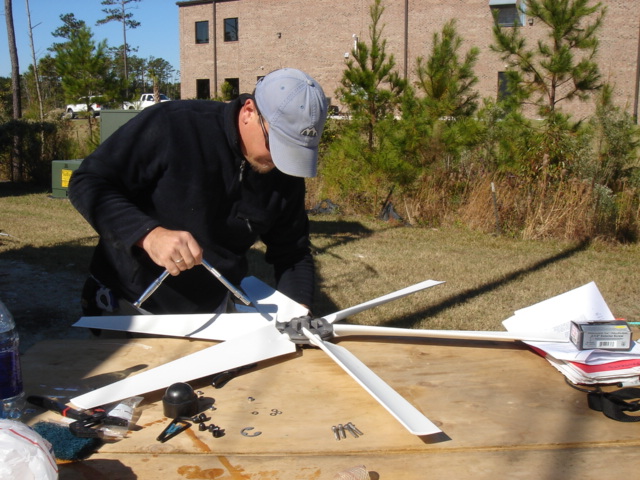

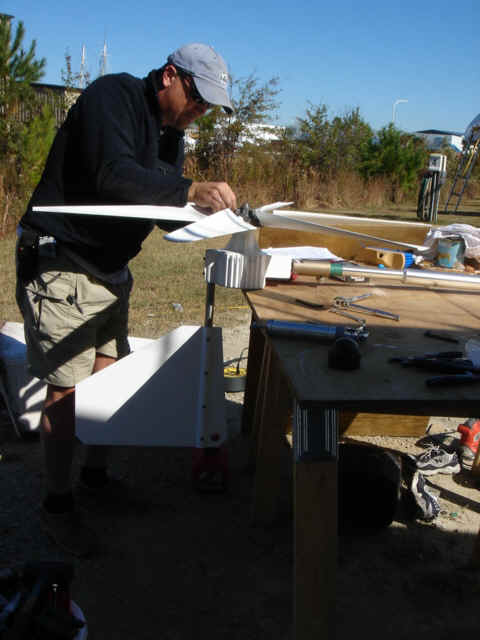

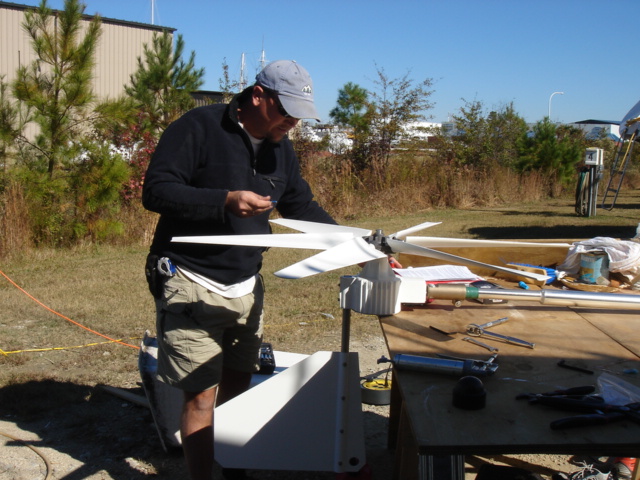

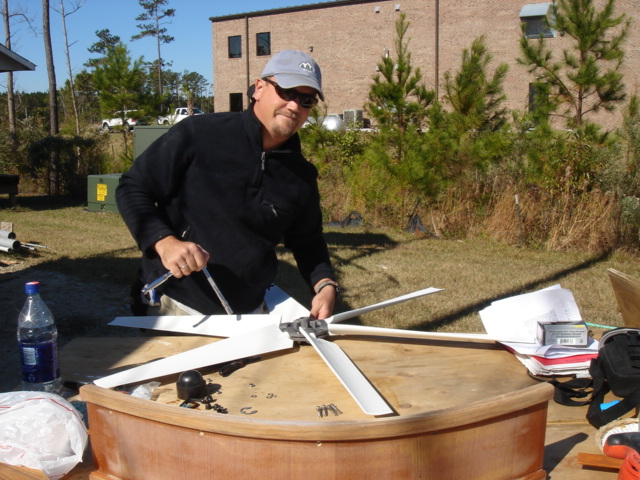

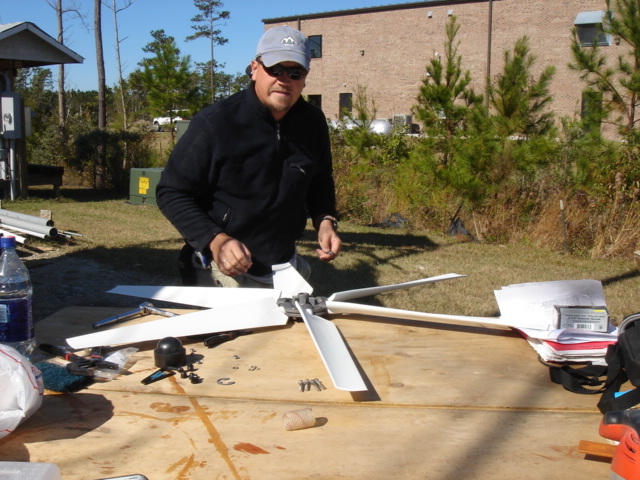

Fitting the fan assembly

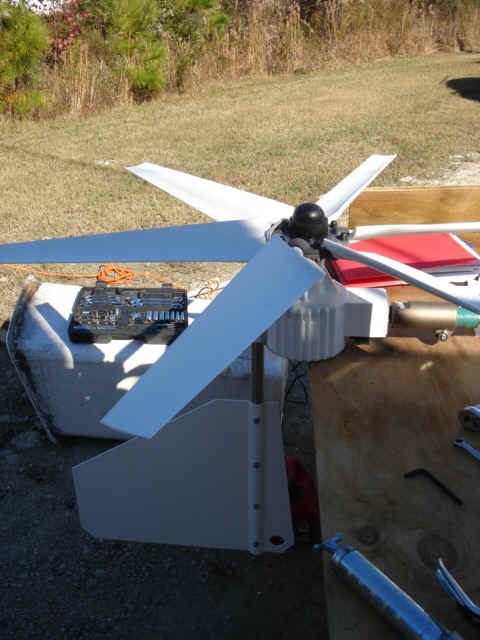

Adding the tail fin

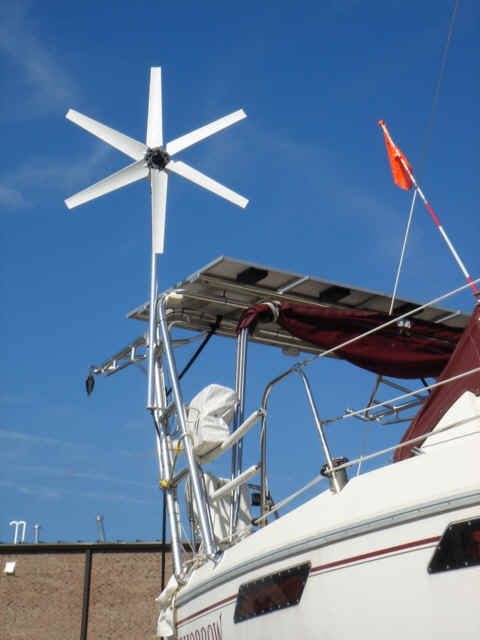

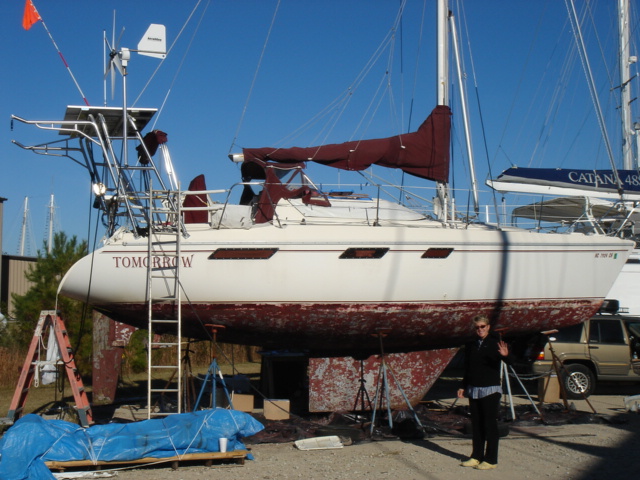

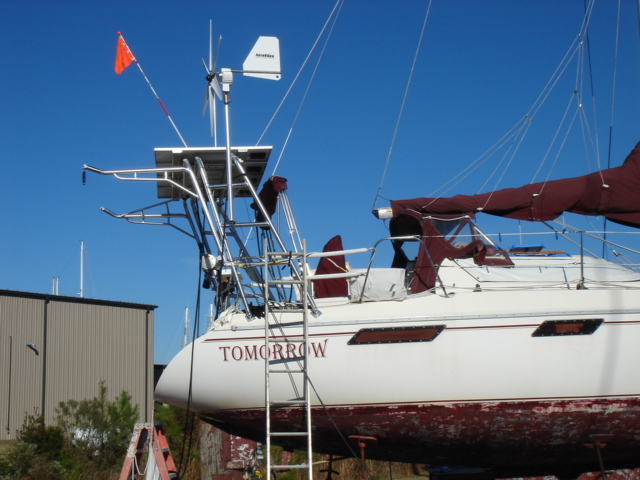

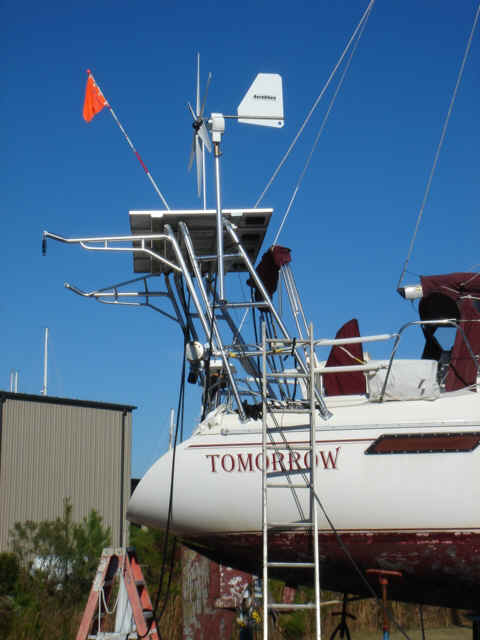

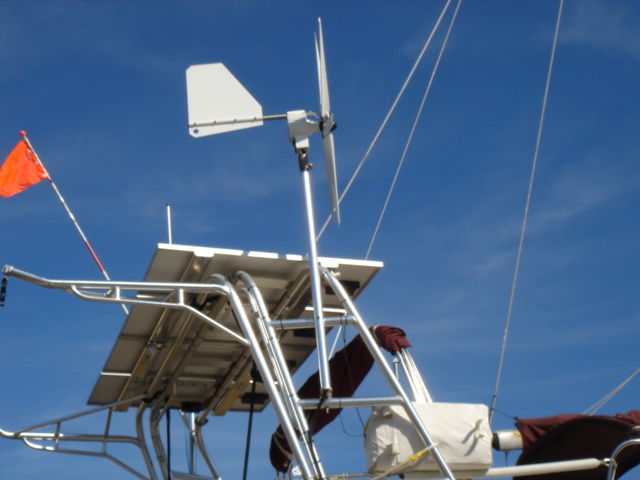

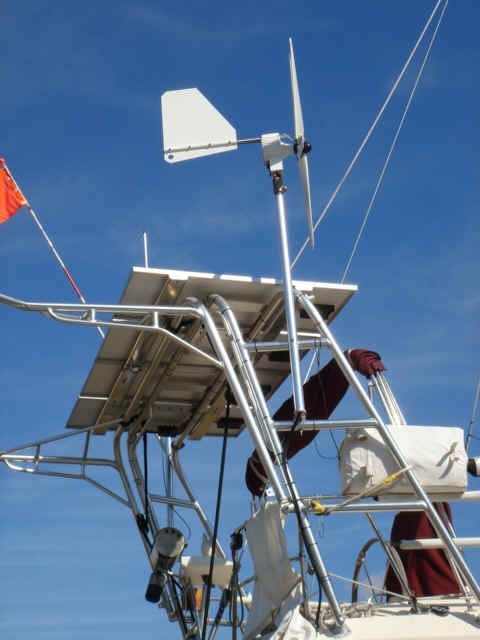

It's up there. These pictures of course, don't give any clue to the adventures of actually getting it up there. It's looks easier than it is.

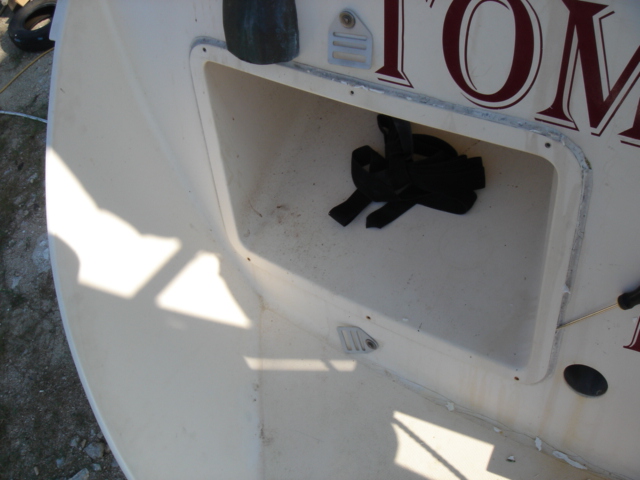

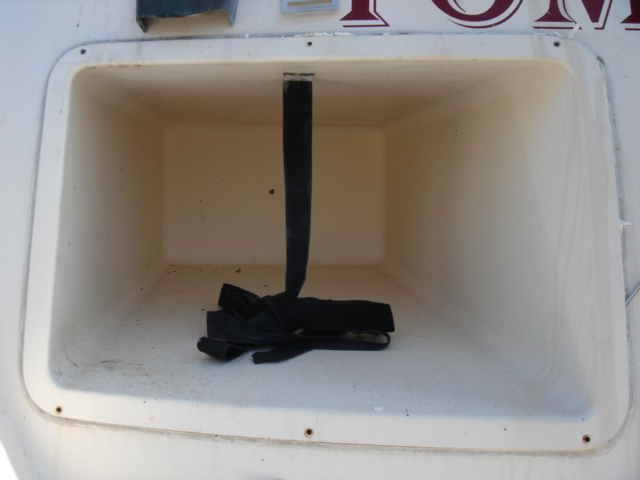

This liferaft locker is far to big and takes up way to much room on the inside of the boat to be left where it is.

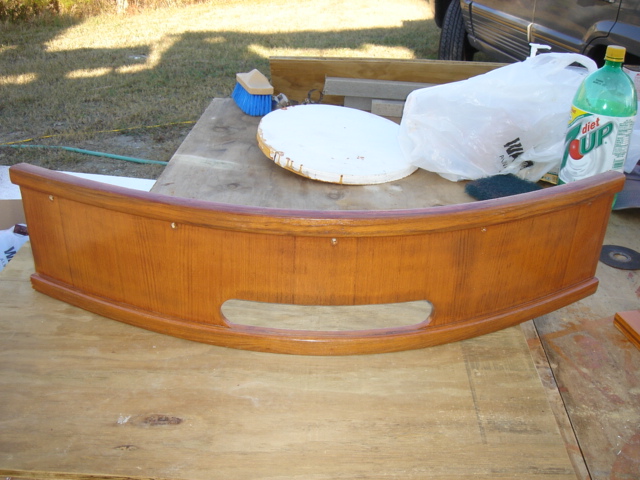

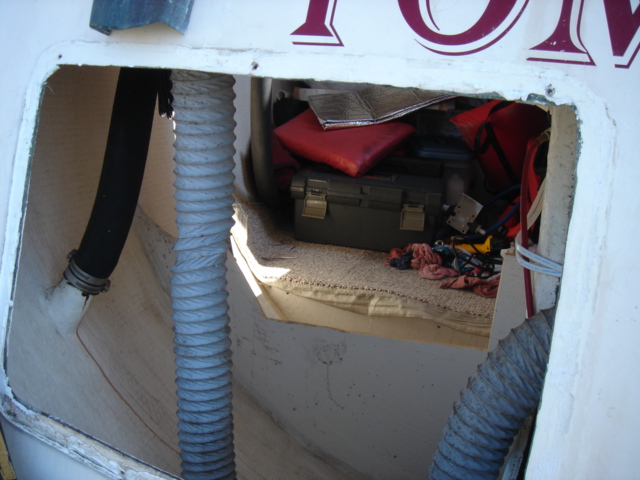

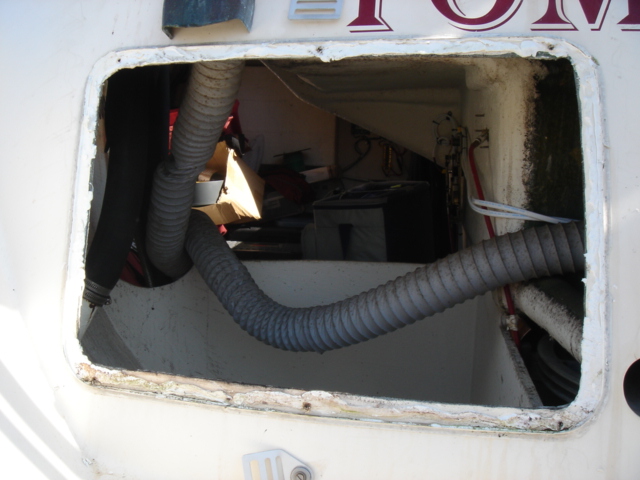

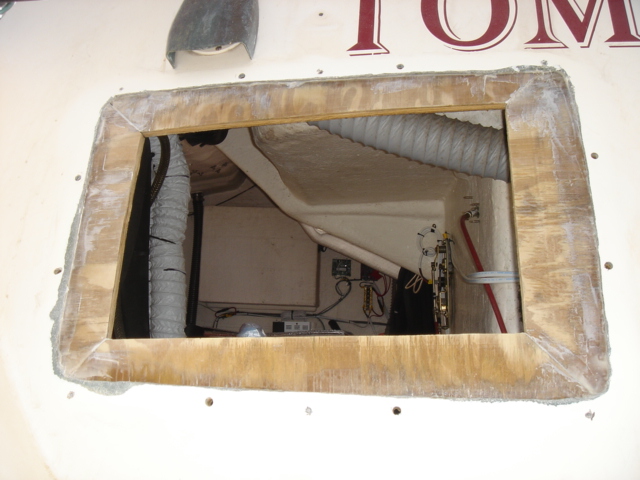

So, out it comes

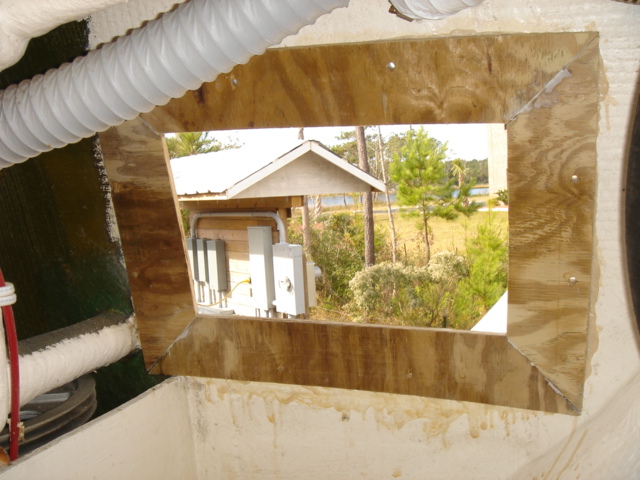

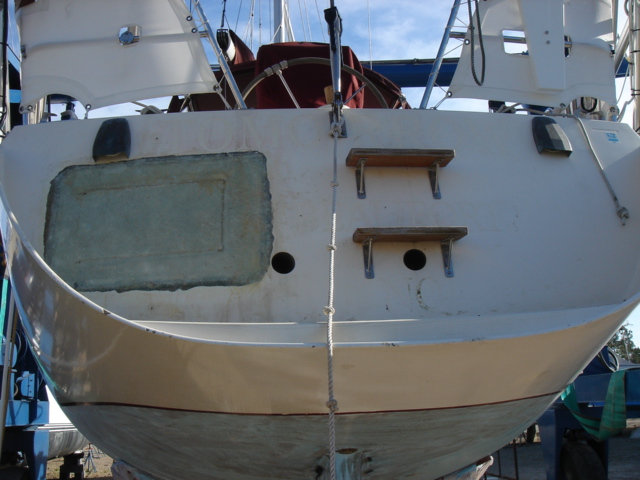

Filling the hole.

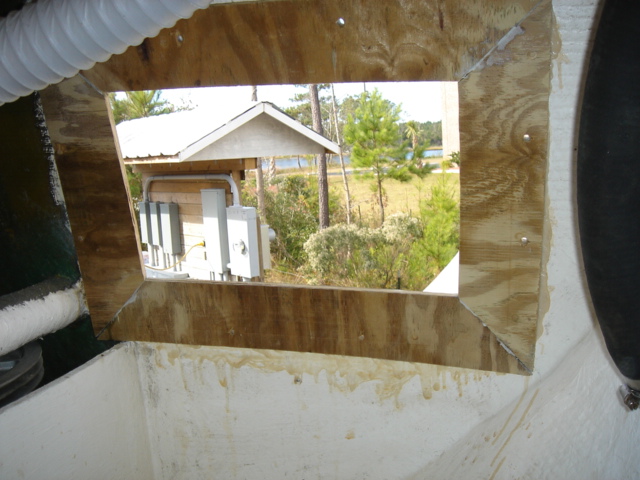

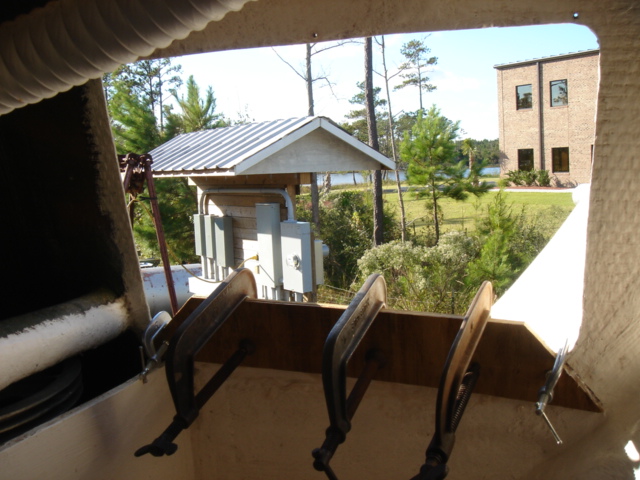

Each of these pieces is epoxied from the inside.

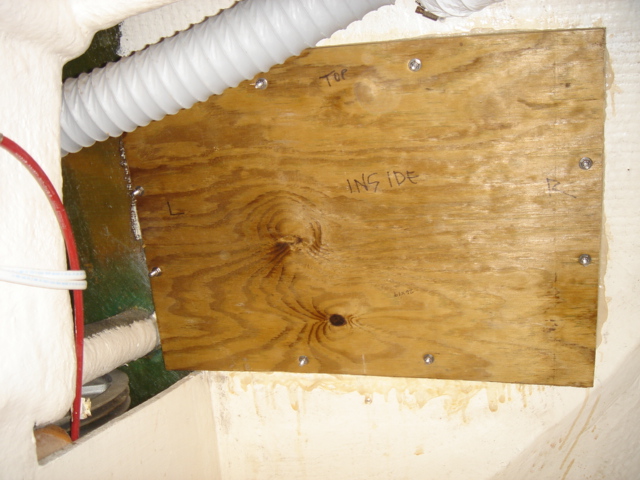

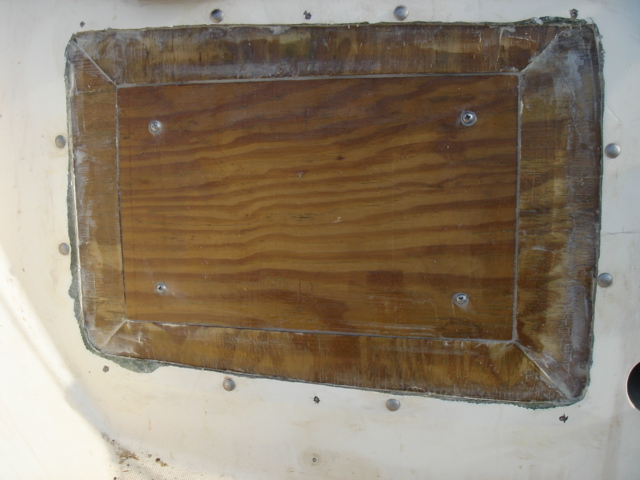

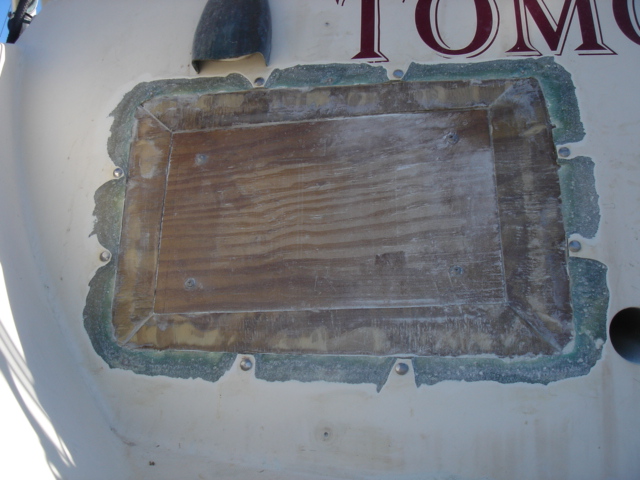

Then this backing piece was added, and attached with both high density adhesive epoxy and through bolts.

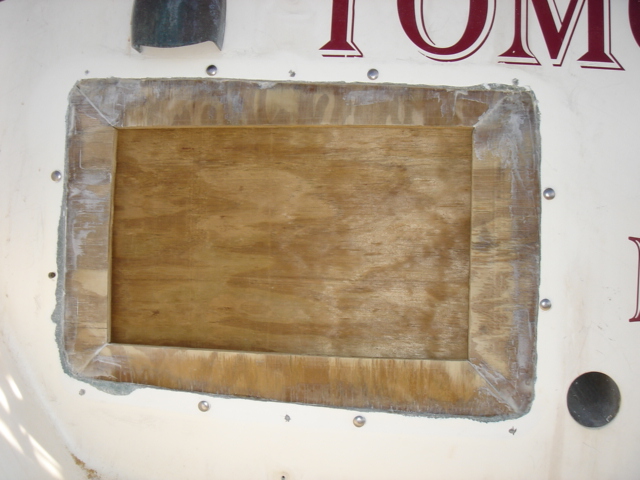

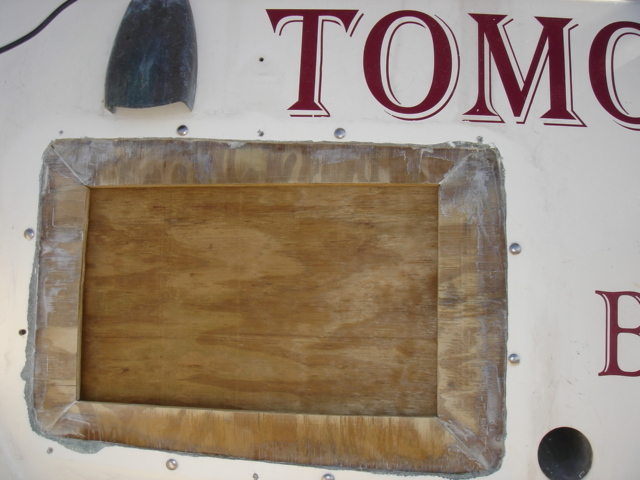

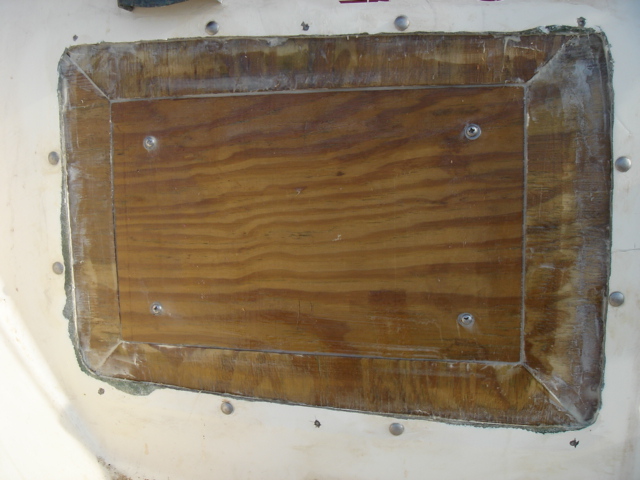

This center piece is added to fair up the plug

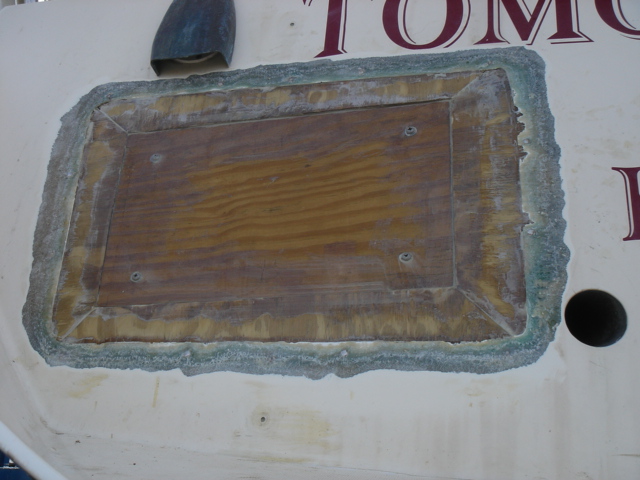

The fiberglass was ground back to create a scarf joint

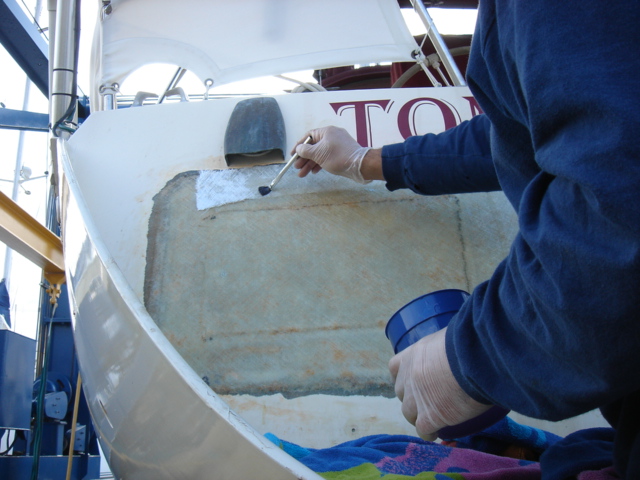

Ready for glassing

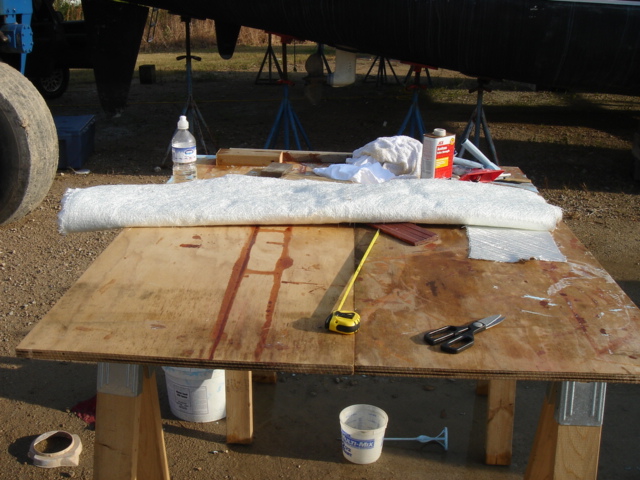

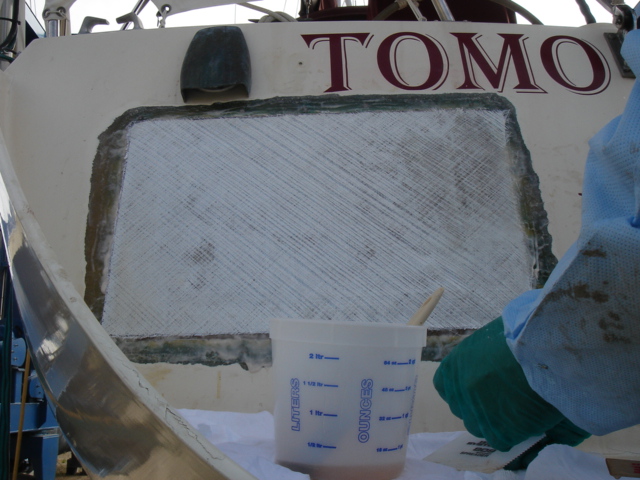

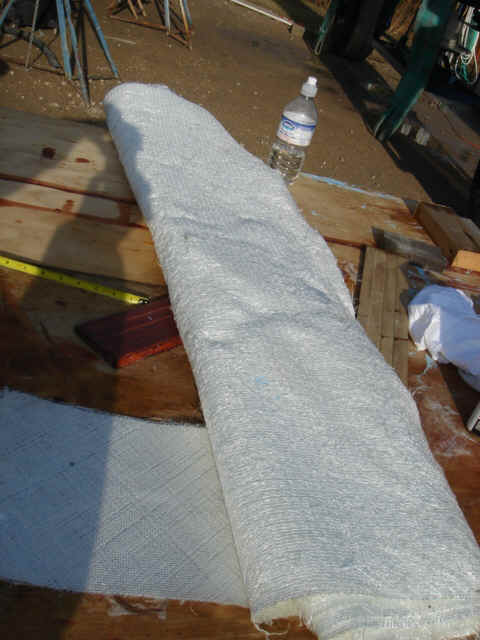

Cutting the fiberglass pieces

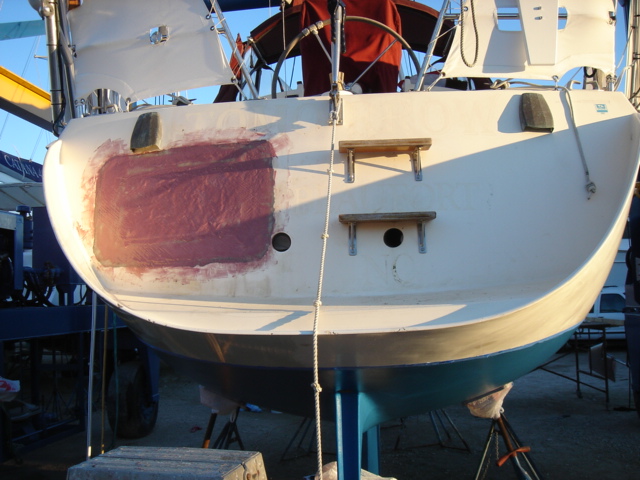

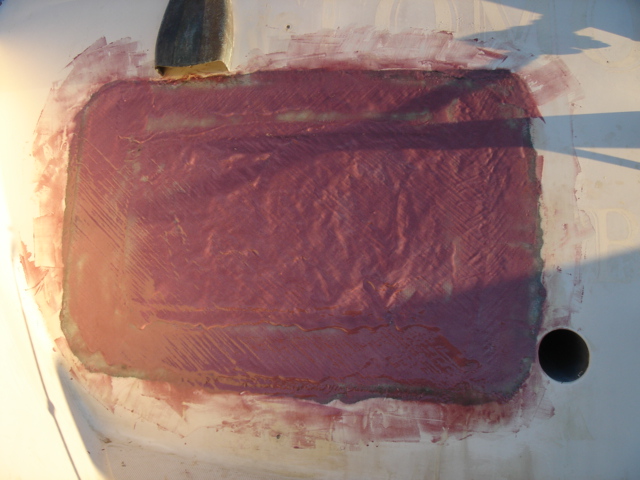

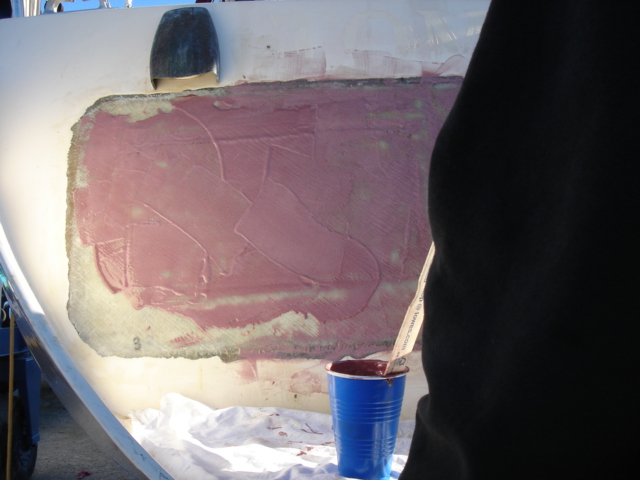

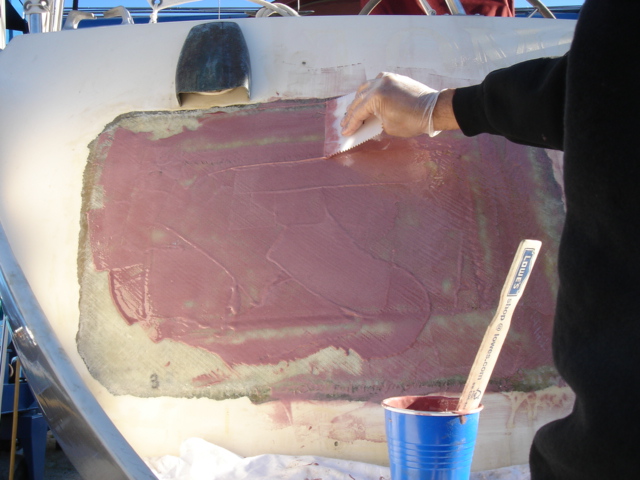

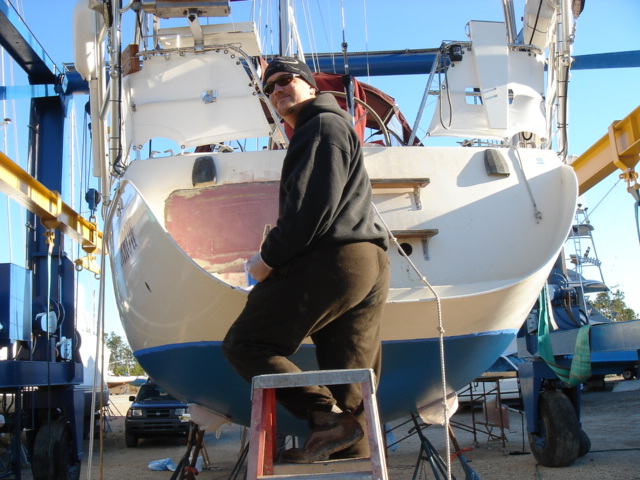

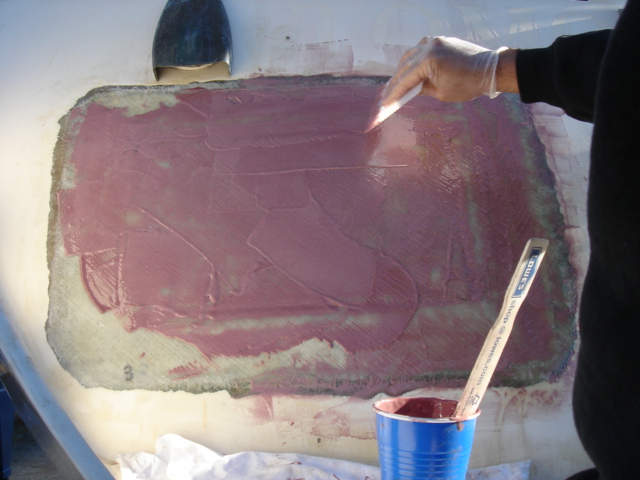

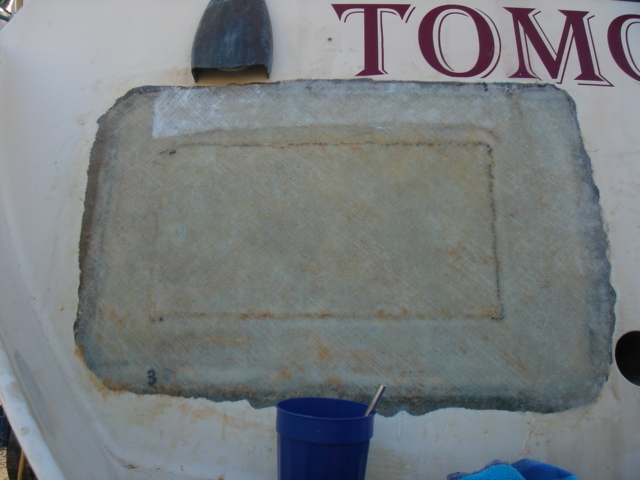

Now to fair it up

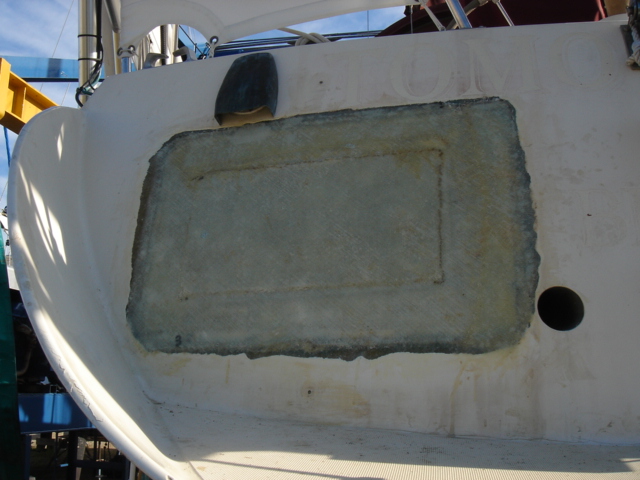

It will get uglier before it gets prettier
The old sink was made of plastic and had become brittle enough to crack around the drain

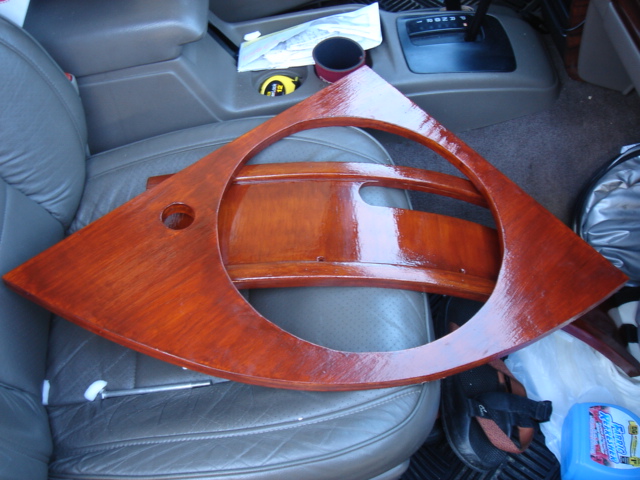

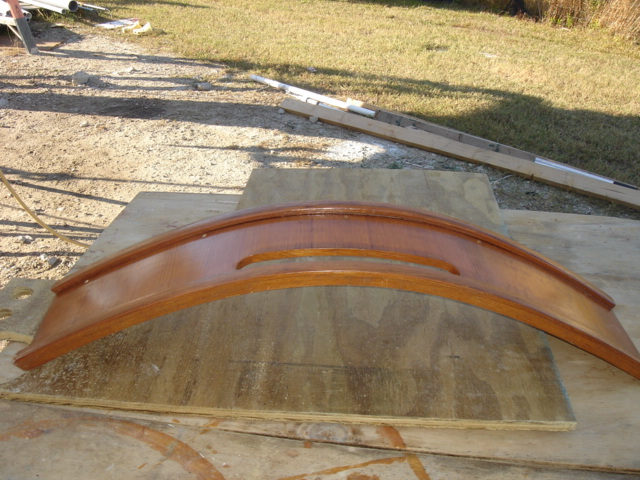

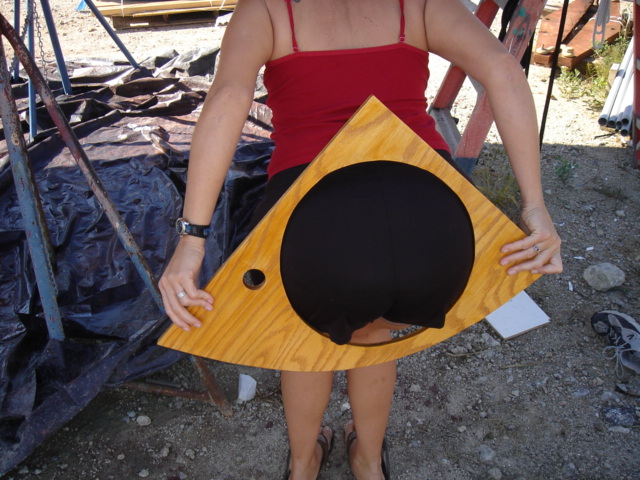

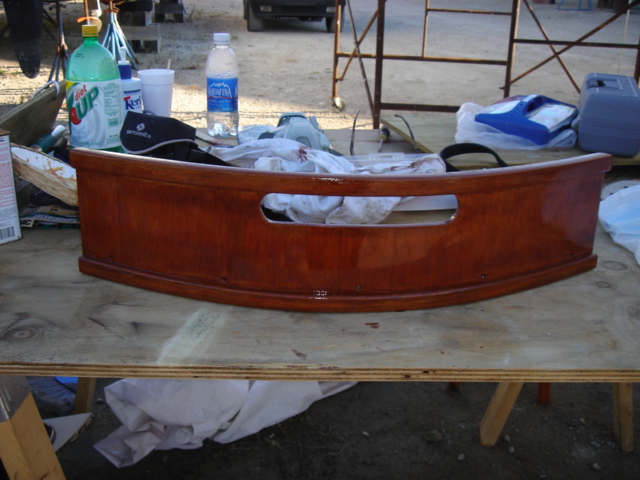

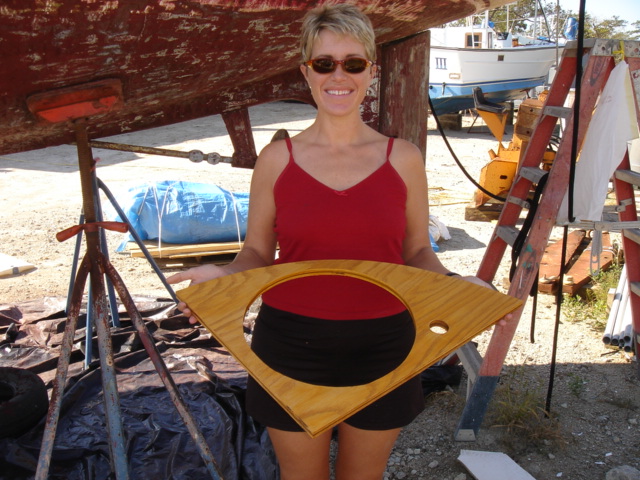

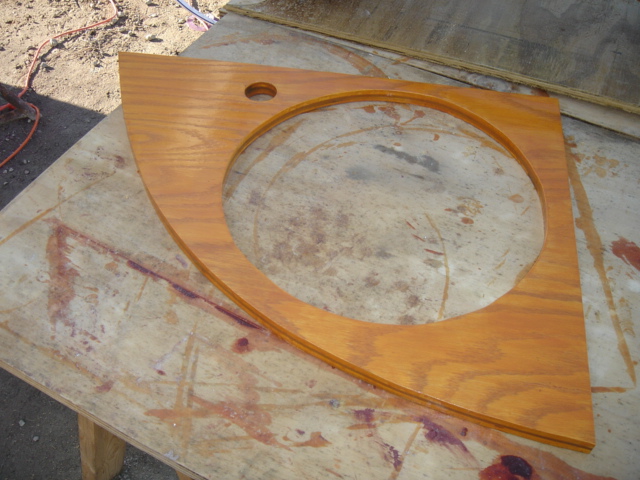

This piece had to be custom made for the new sink

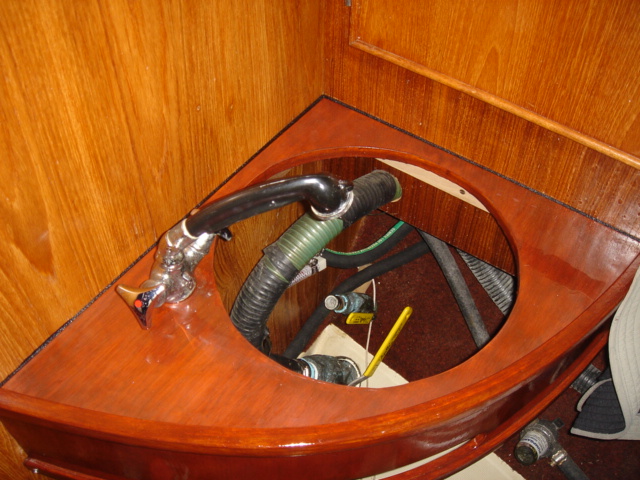

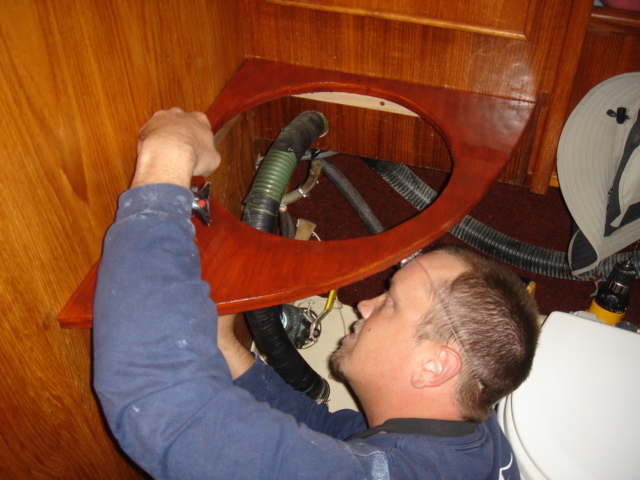

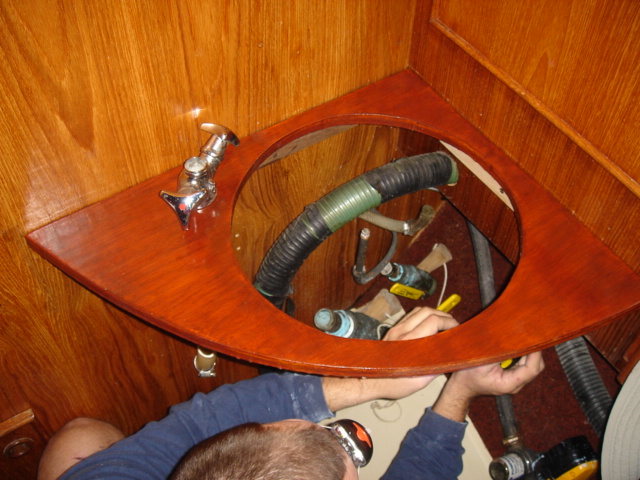

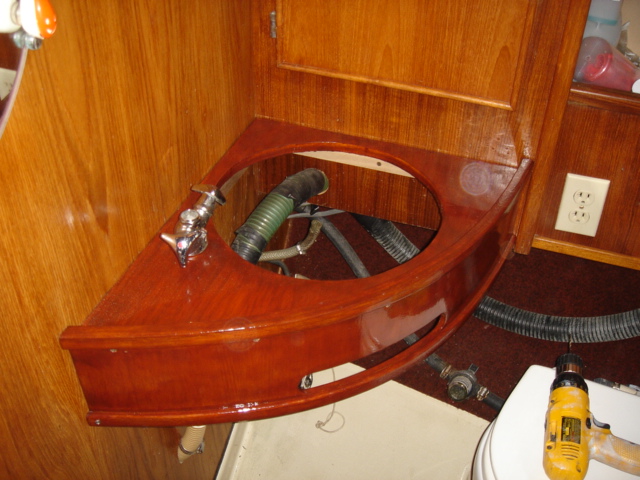

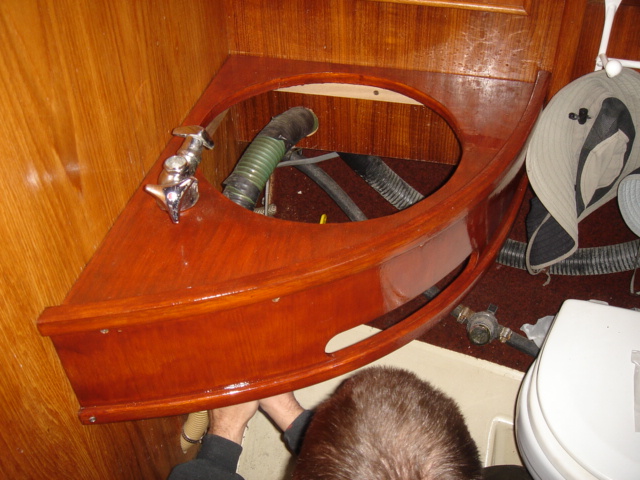

Time to reinstall the sink

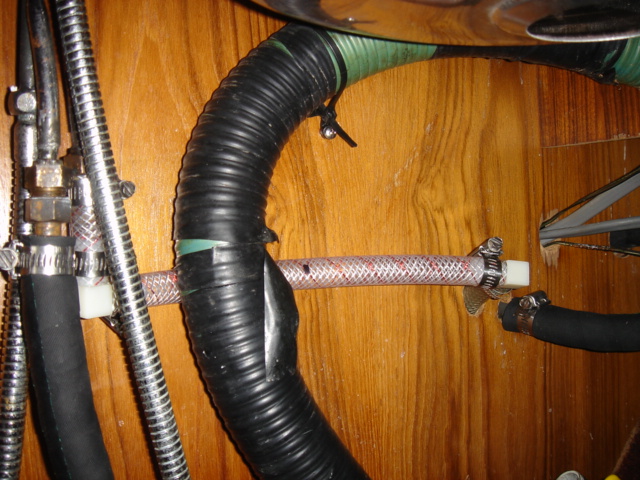

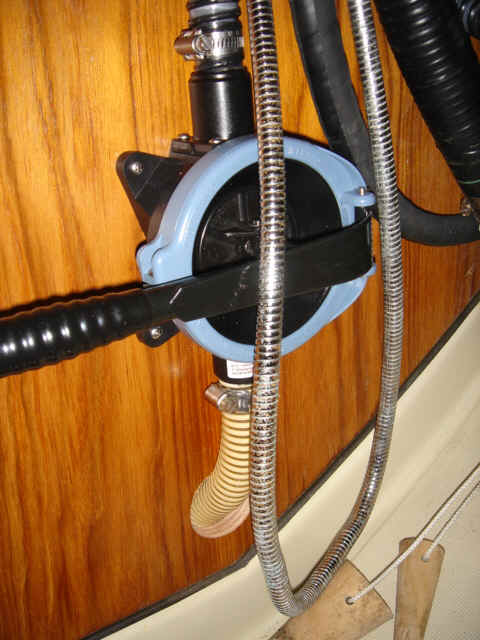

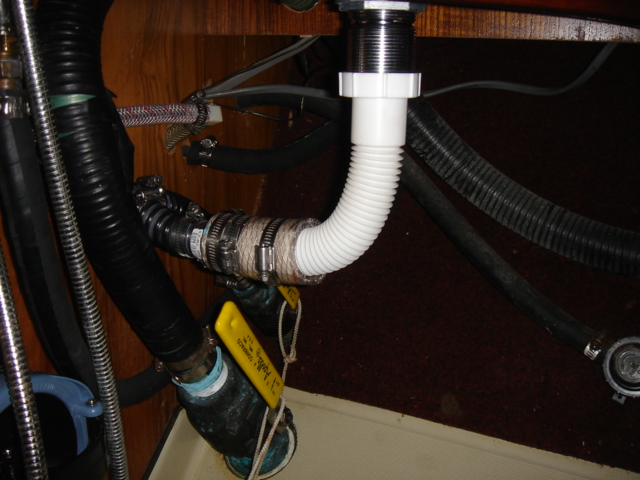

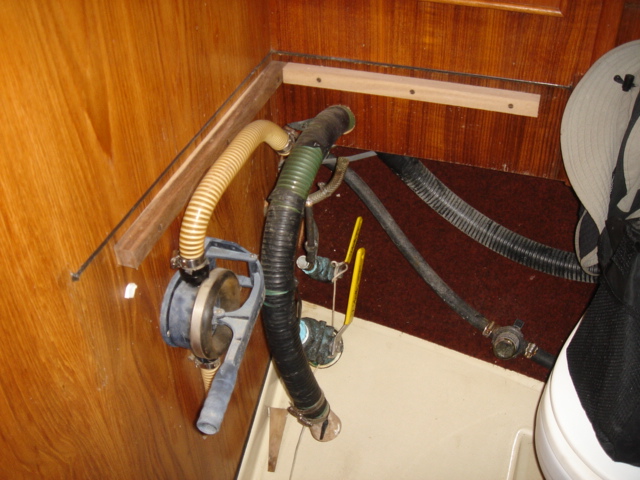

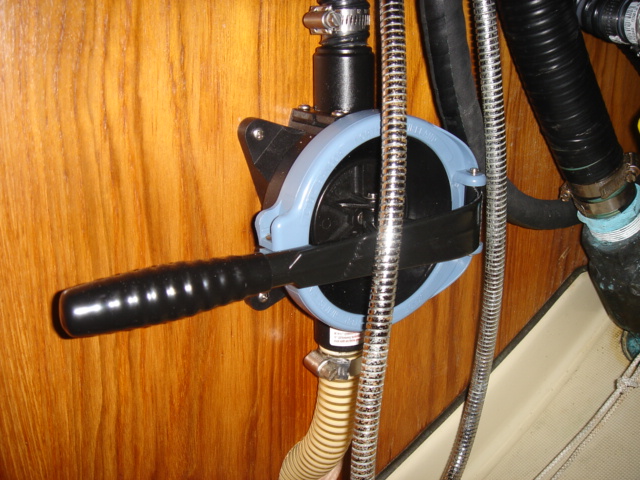

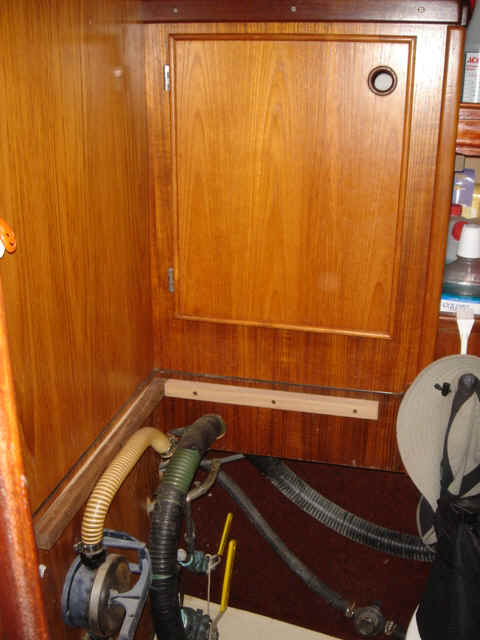

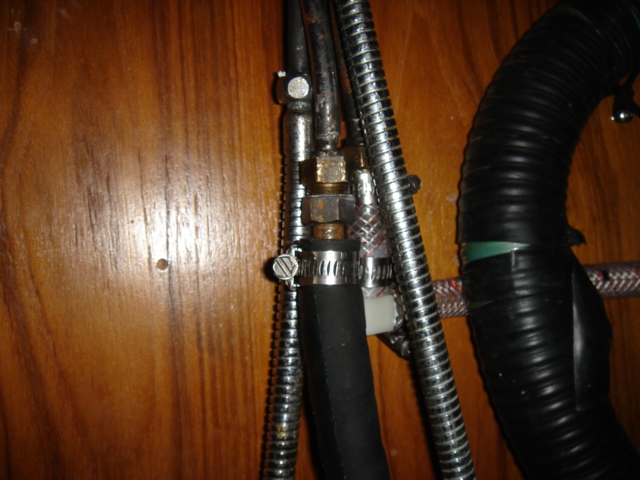

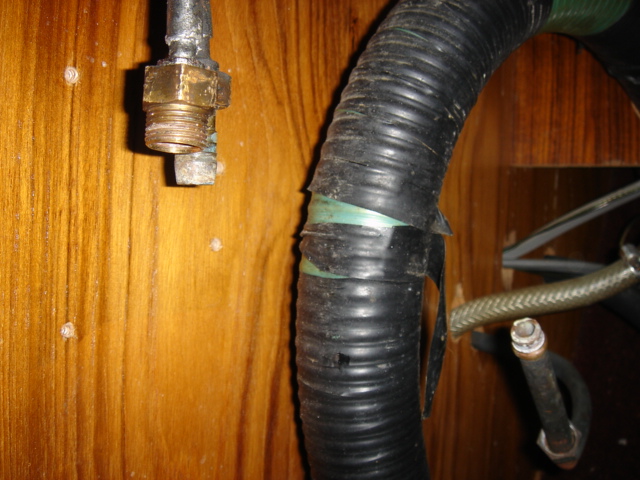

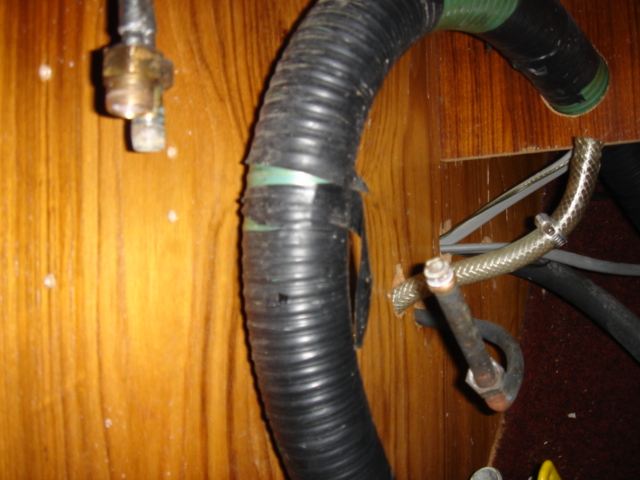

Now to put all of this spaghetti plumbing back into working order
The tape has been removed and you can see the black caulking around the edges of the new sink top

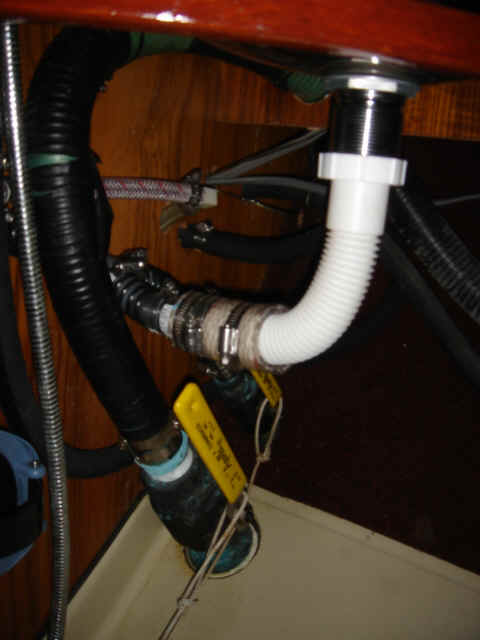

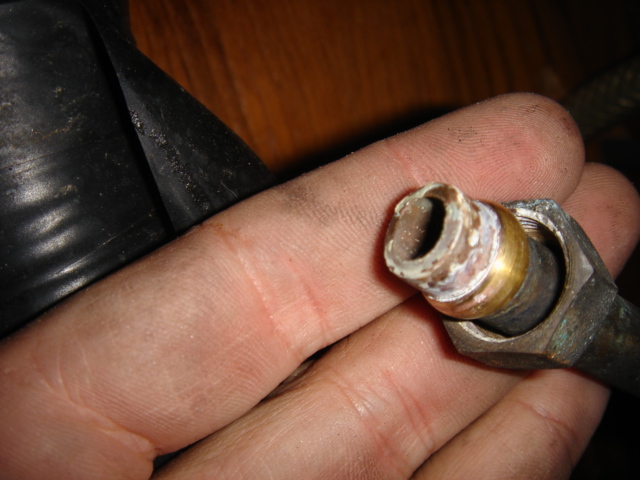

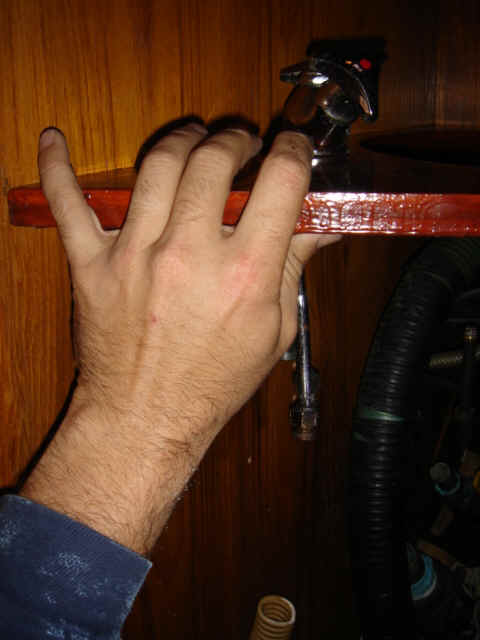

The hot and cold water are now hooked back up
Drop in the sink and seal

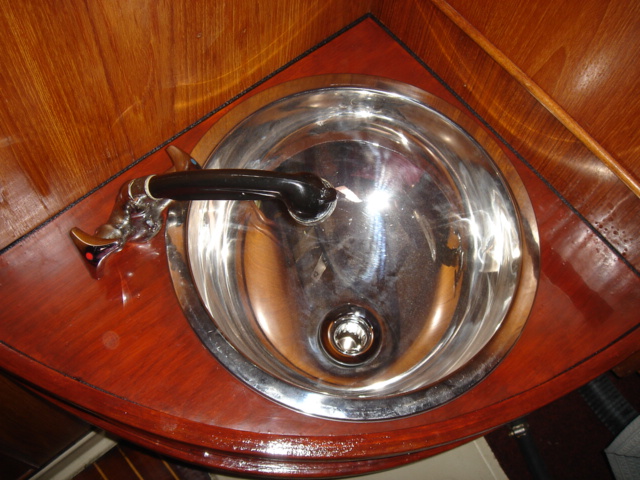

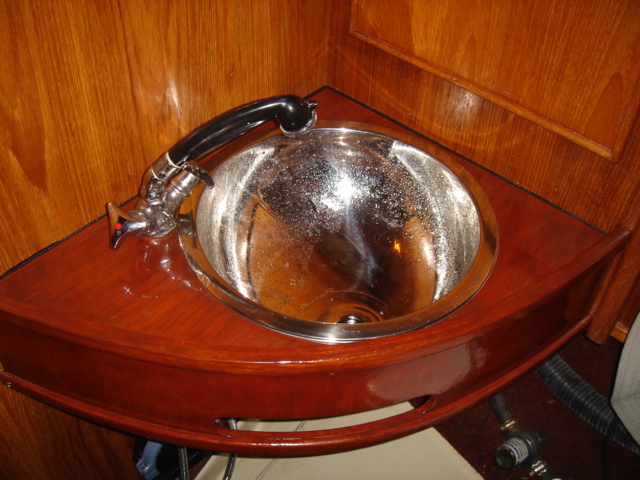

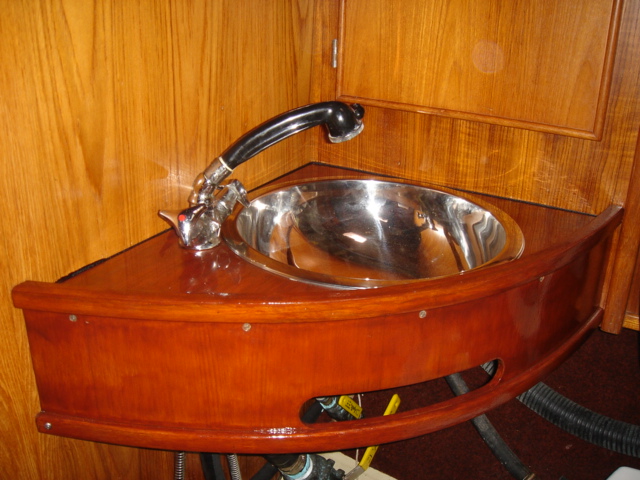

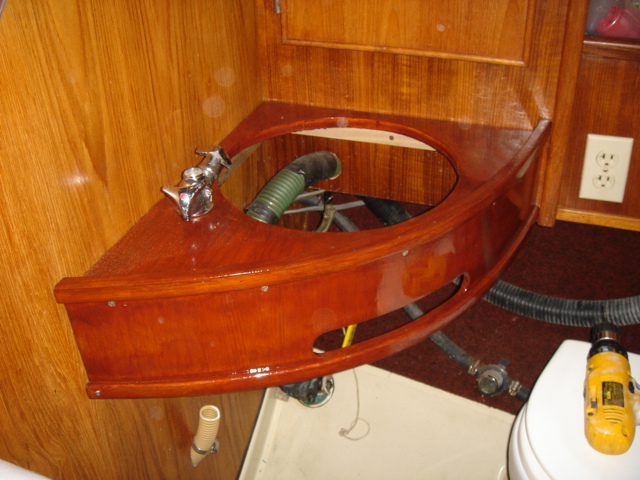

Almost finished
|
|
